Main view

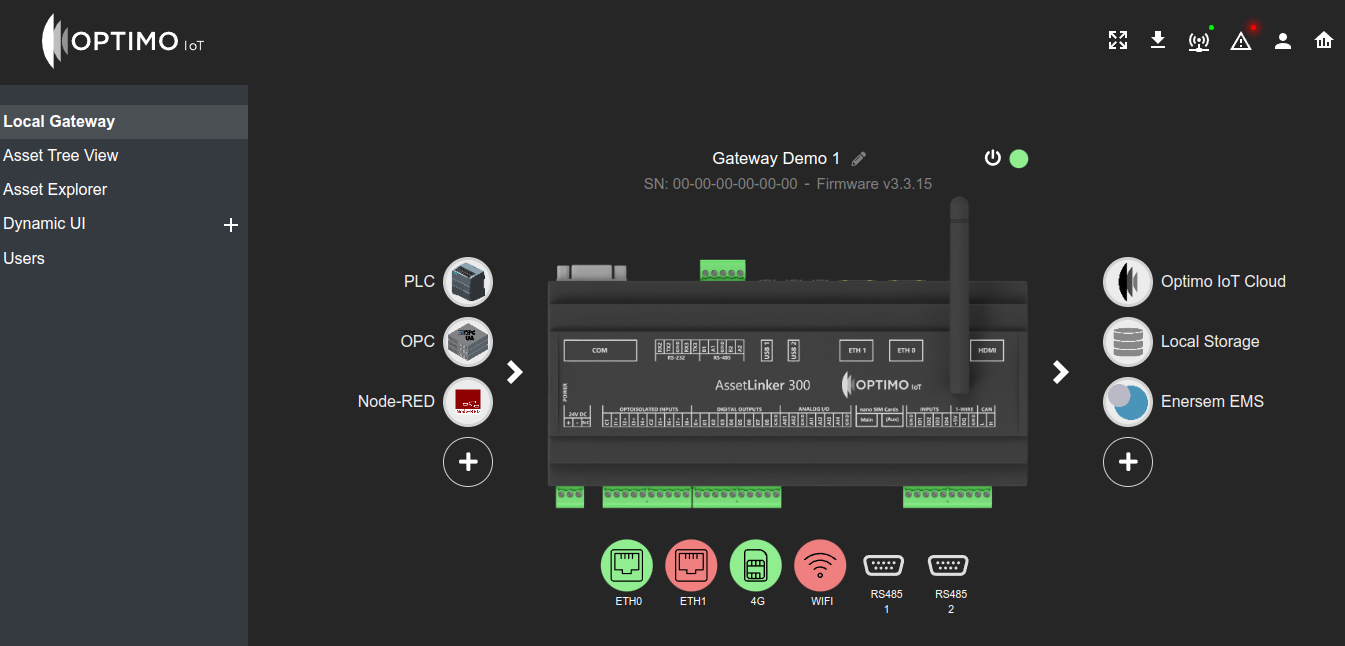

Settings page

Access

Once logged in, you can access the settings page by clicking on the Settings icon at the top right. This page is only available for users with administrative permissions.

Status information

When the page loads, you can immediately see this information:

  • serial number of the gateway
  • installed firmware version
  • status of the network interfaces

On desktop, you need to hover the mouse pointer over the gateway image to have all the information available

Network interfaces

Below the image of the AL300, the available network interfaces are listed. When you hover the mouse, for each one it indicates:

  • the status:
    • green: configured and connected
    • red: configured but not connected
    • gray: disabled
  • the IP address
  • (only for WiFi) the name of the network it is connected to
  • if the interface is used for the internet connection (Default gateway)

By clicking on each interface you can manage its settings. For more information, see the specific pages:

On this page the requirements that networks providing internet access must have for the gateway to connect correctly to the cloud are reported

RS485 serial interfaces

By clicking on the respective icons, you can configure the parameters of the two available serial ports (e.g. Baudrate, parity, etc). These settings are inherited by any configured RS485 devices.

Data sources and destinations

The icons on the sides of the gateway allow you to view, manage and add:

  • data sources - on the left (e.g. PLC, modbus and OPC-UA devices, etc)
  • data destinations - on the right (e.g. cloud platform, local storage)

Adding a new device

You can add devices, compatible with the purchased license, by clicking on the Add button ➕

Add source

You can then select the type of data source to add and configure it through a guided procedure

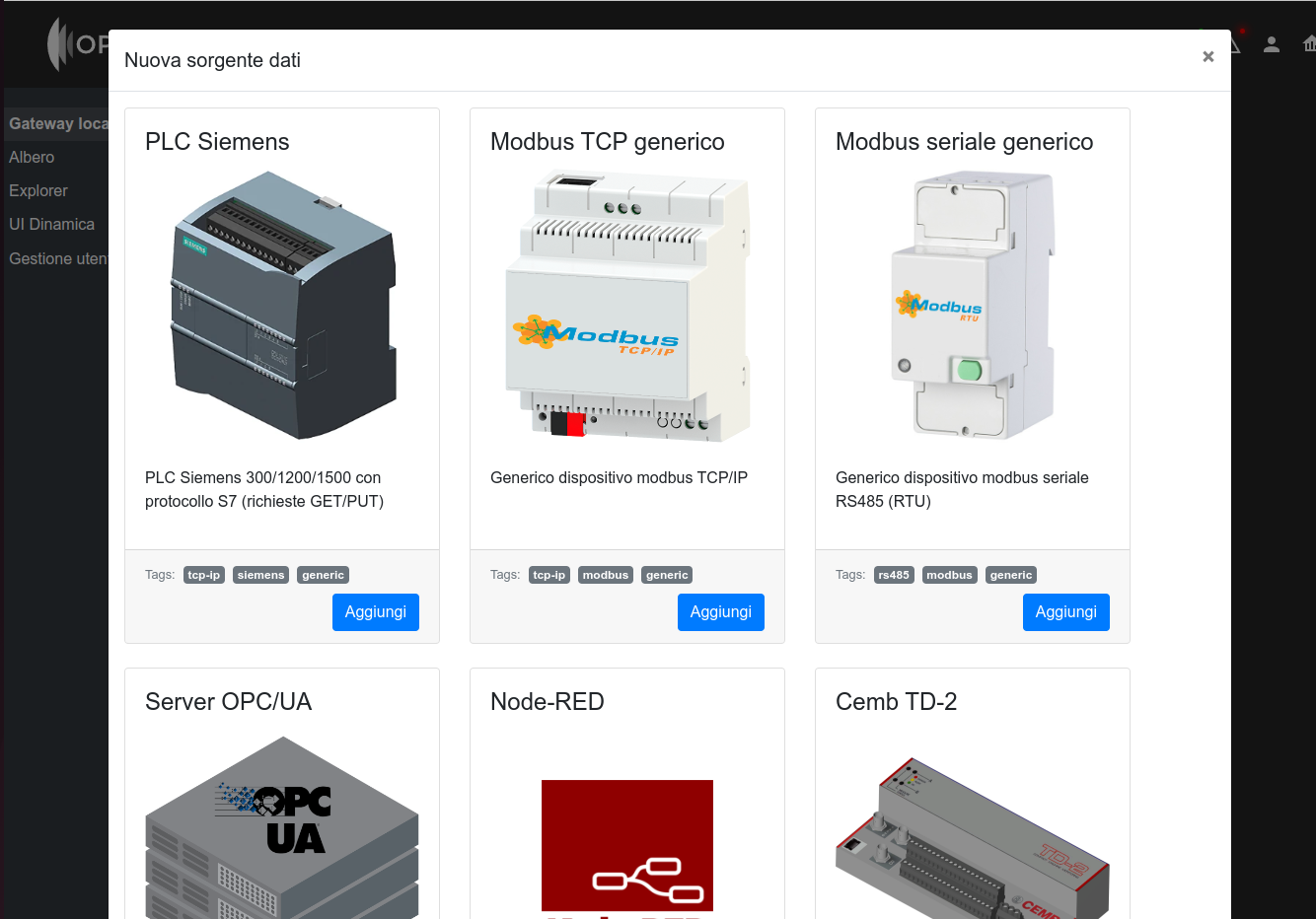

Select source

Subsequently, connection parameters will be requested (e.g. IP address), the choice of variables to acquire and how to store them.

Here are the currently supported devices and their configuration guides.

Status and modification of an already configured device

You can view the status of the device and configure it or have diagnostic information by hovering the mouse cursor over the respective icon

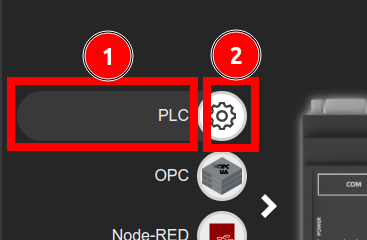

Edit source

  1. Information on the current status (connection, variable values)
  2. Modification of settings and advanced diagnostics
