Ethernet

Each interface can be:

• enabled or disabled

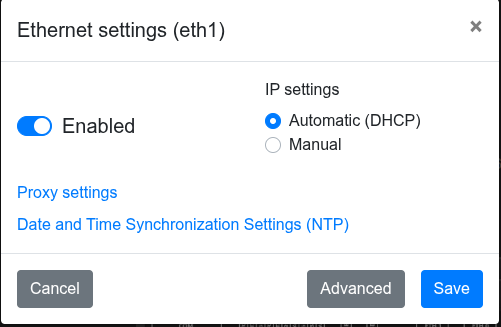

• if enabled, the type of IP settings can be configured:

  • automatic (with DHCP server)



  • manual

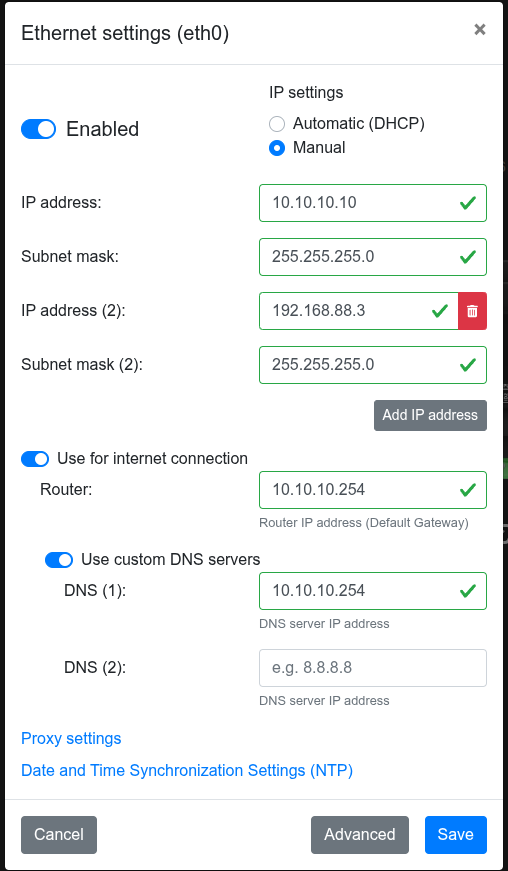

Manual settings

In addition to IP address and subnet mask, it is possible to enable the interface for internet connectivity. In this case, it is necessary to specify the router address (Default Gateway) and optionally up to two DNS servers to use.

It is possible to assign more than one IP address to the same interface

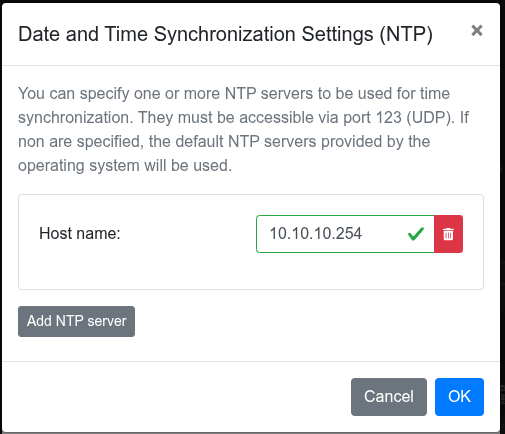

NTP (date and time synchronization)

(available from firmware version 3.8.6)

If the AL300 is not connected to the internet or a firewall blocks outgoing requests on the UDP port, it is possible to specify a custom NTP server. The server with the specified IP is used in addition to a list of predefined servers.

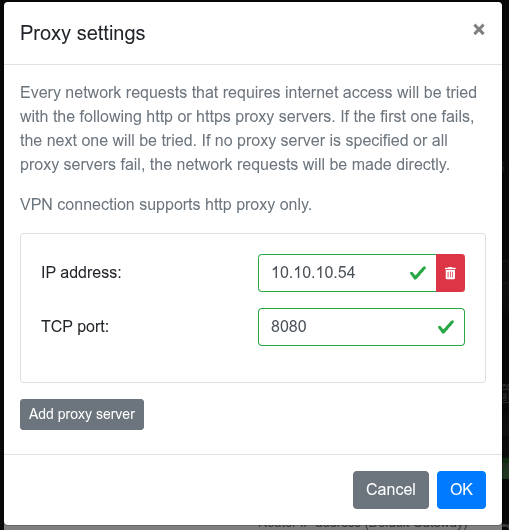

Proxy

It is possible to use a proxy server for the internet connection. It is possible to specify more than one server. If the first one fails, the next one will be used. If no proxy server is specified or all proxy servers fail, network requests will be made directly through the router.
