Alarms

In the dashboards, there is a dedicated page for viewing the status of alarms, their history, and managing notifications.

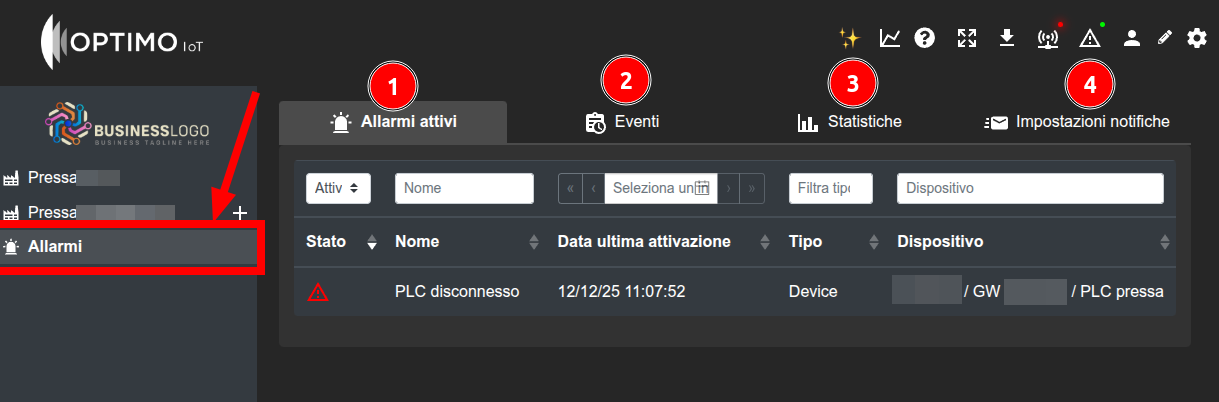

The page is divided into 4 tabs:

1. Active Alarms: shows the list of currently active alarms
2. Events: shows the history of alarms (activations, deactivations, management)
3. Statistics: shows statistics on alarms (number of activations per day) in a bar chart
4. Notification Settings: allows you to configure email and SMS notifications when specific alarms are activated

Active Alarms

The tab shows the list of active alarms, with the following information:

• current status (active or inactive). By default, the filter for this column shows only active alarms, but it can be modified to also display inactive alarms
• name of the alarm
• date of last activation
• type of alarm (lost connection to device or specific device alarm)
• device associated with the alarm (e.g., machine, plant, etc.)

You can filter and sort the table based on all available columns.

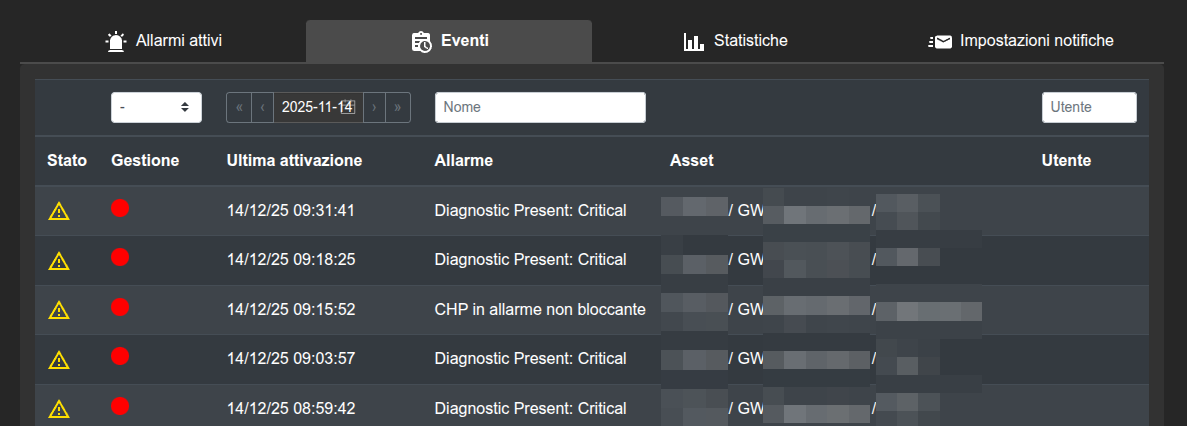

Events

The tab shows the history of alarm activations, with the following information:

• Status: current status (active or inactive)
• Management: status of the management of the alarm activation. It can be:
  • Not taken in charge
  • Taken in charge
  • Resolved
• Activation Date: activation date
• Alarm: name of the alarm
• Asset: device associated with the alarm (e.g., machine, plant, etc.)

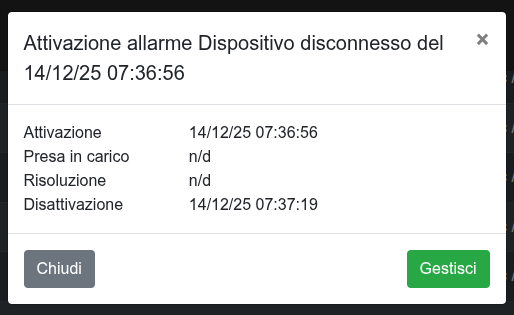

By clicking on each row of the table, you can view further details about the event:

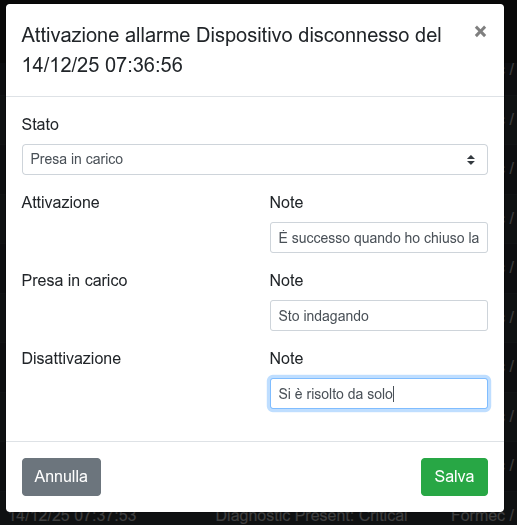

By clicking on Manage, you can update the management status of the event and enter notes to keep track of the actions taken:

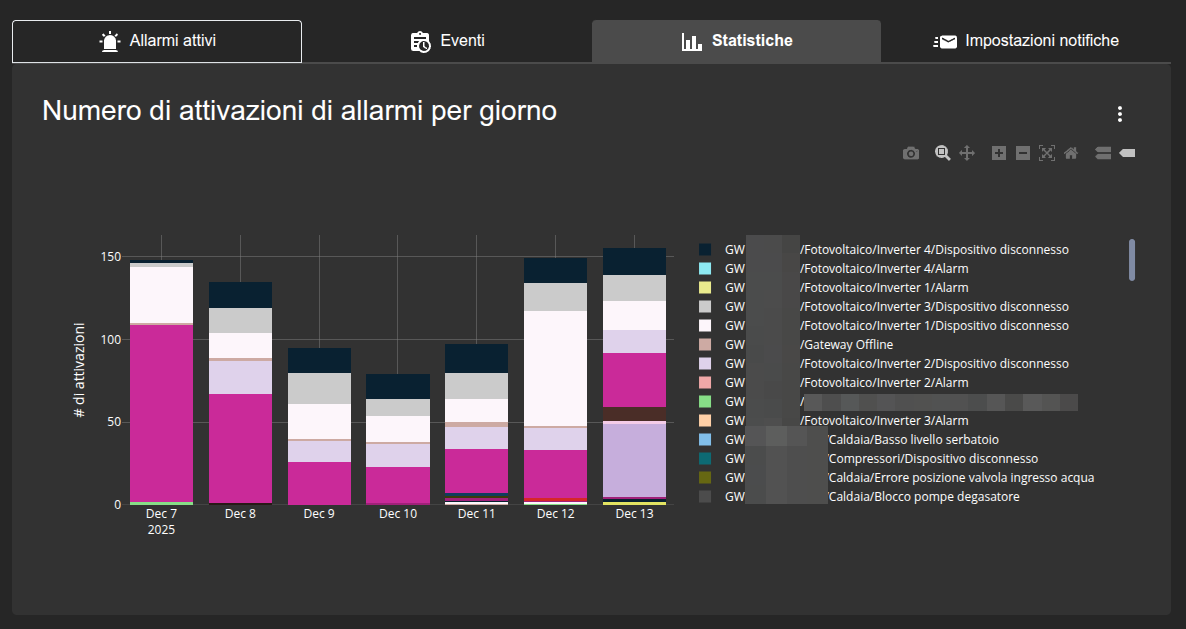

Statistics

The tab shows a bar chart with the number of alarm activations per day. You can view the number of activations for each individual alarm by selecting it from the legend on the right side of the chart.

Notification Settings

See chapter Notifications.
