Gauge

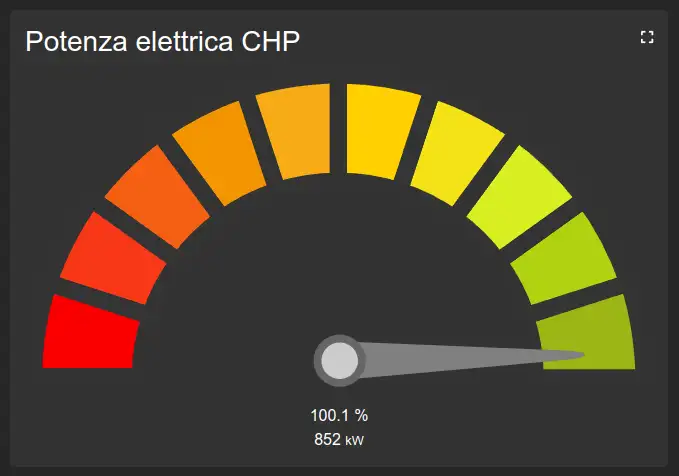

Displays the current value of a variable on a dial. The needle is updated in real time according to the value and the configured scale.

It provides an immediate view of a measurement relative to its operating range, such as power, pressure, or utilization percentage.

Configuration

The value source is chosen through variable selection. Gauge-specific settings define the indicator scale.

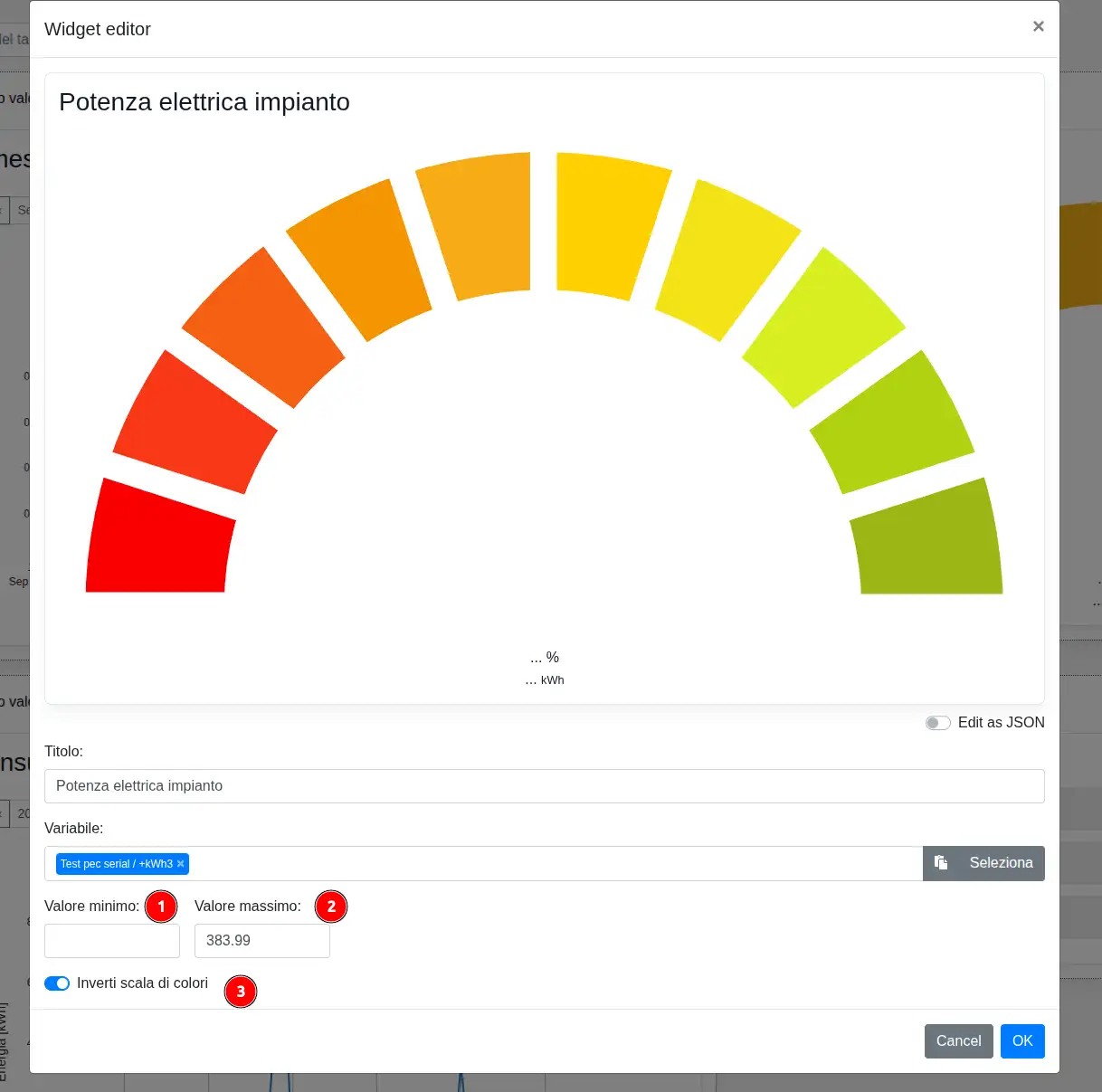

Specific settings

1. Min value defines the starting point of the scale.
2. Max value defines the ending point of the scale.
3. Invert color scale reverses the color scale, displaying colors normally associated with high values on the low-value side and vice versa.
