P-Q-cosfi diagram

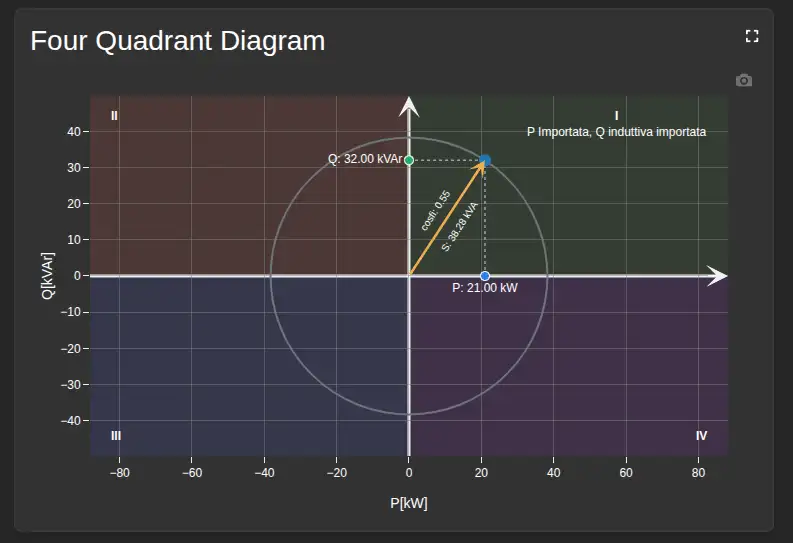

Displays the current operating point defined by active power P and reactive power Q on a Cartesian plane. It also shows apparent power, power factor, and angles across the four quadrants.

It is useful for analyzing energy import and export and the plant's inductive or capacitive behavior.

P-Q-cosfi diagram

Configuration

The P and Q variables are set through variable selection. Names, units, quadrants, colors, and operating-point options are specific to the diagram.
