Weekly schedule

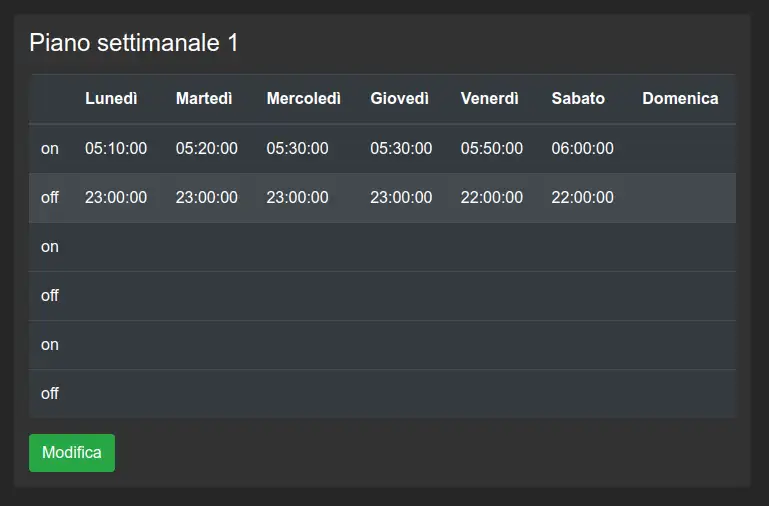

Displays the weekly schedule associated with a PLC scheduling variable. If supported by the variable, it lets the user update scheduled times and values.

Configuration

The scheduling variable is chosen through variable selection. Schedule editing depends on the structure supported by the selected variable.

Specific settings

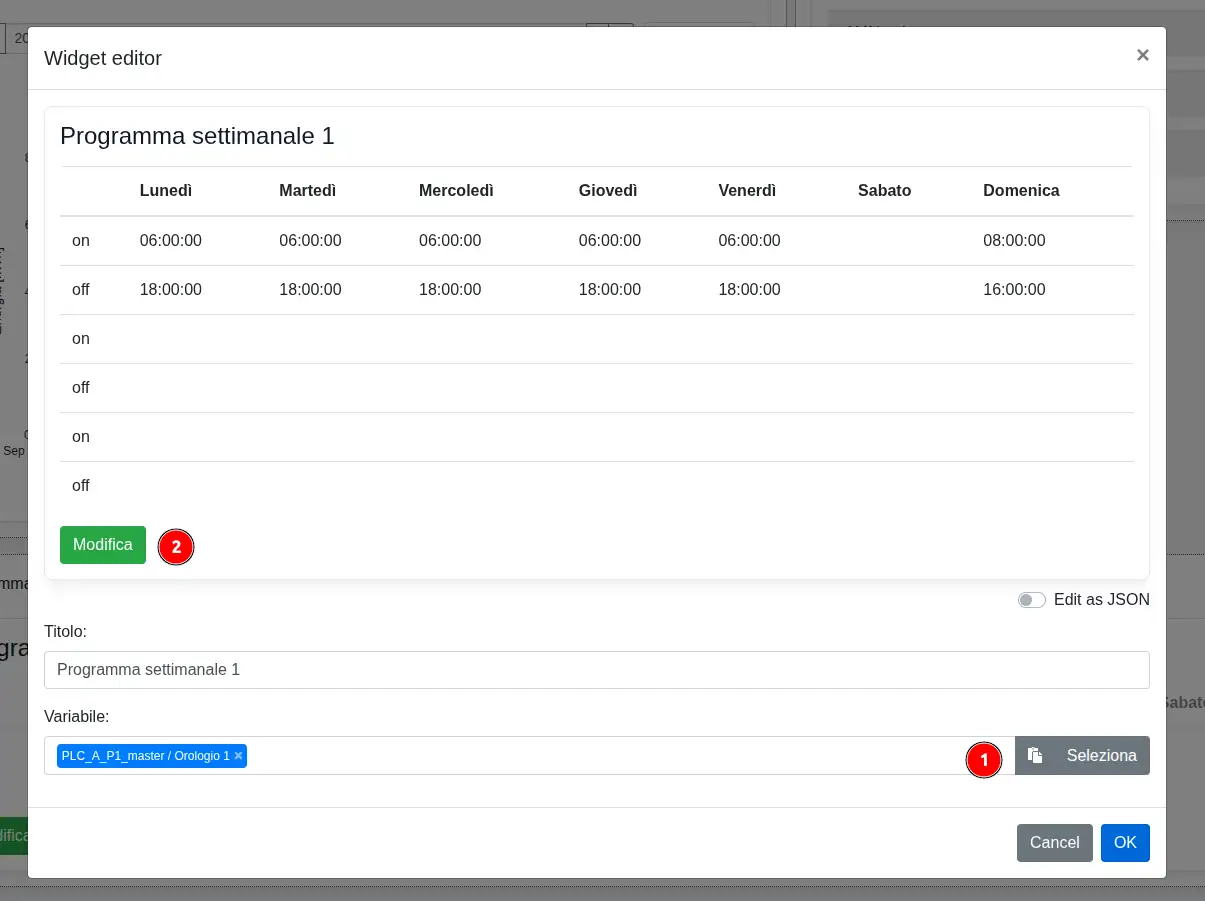

1. Variable selects the PLC variable containing the weekly schedule.
2. Edit opens the editor for the schedule shown in the preview, where times and scheduled values can be updated for the different days.
