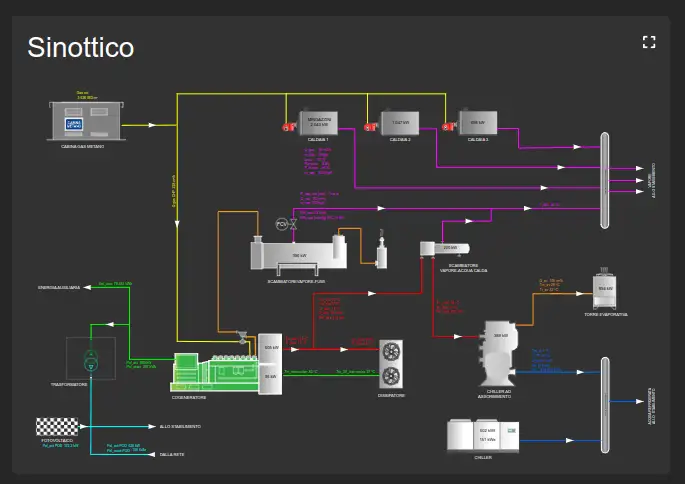

Synoptic view

Displays an animated drawing of the plant. Elements in the synoptic view can be associated with variables so that their values and graphical state are updated in real time.

It is useful for visually representing machines, production lines, connections, and process flows.
